Real-time Network Quality Monitoring

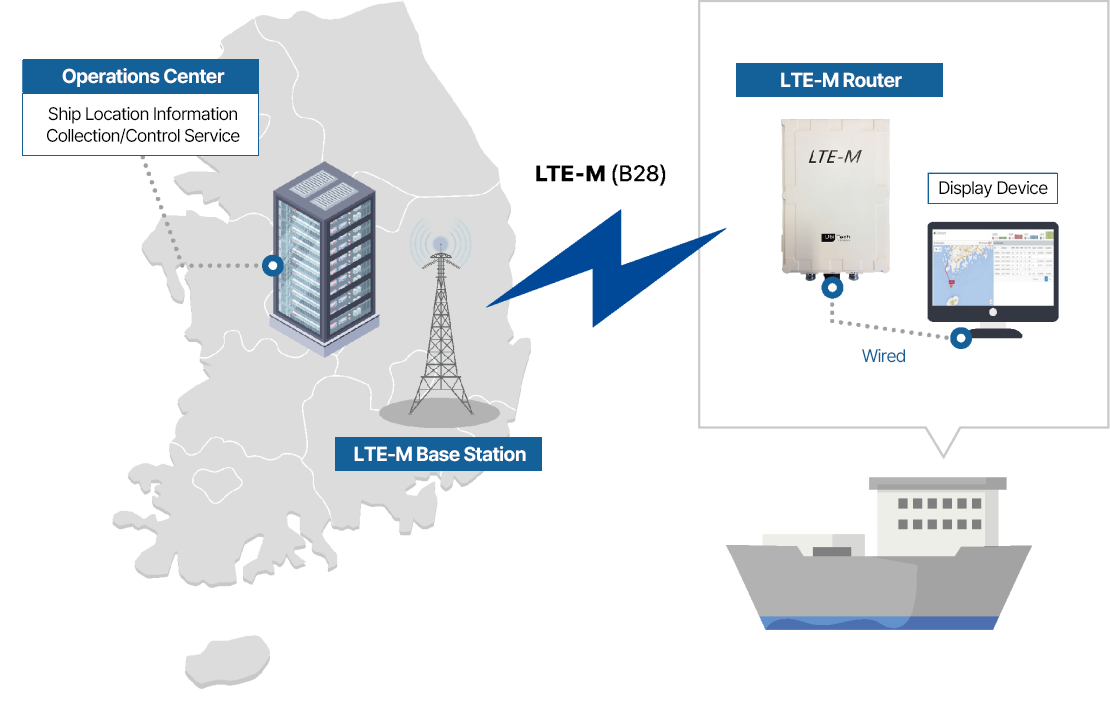

A system that monitors and analyzes the quality of communication signals on the current location and route of the ship based on location information and communication signal quality information collected in real time from terminals installed on the ship

Real-time monitoring of network quality (RSRP, SINR) and base station information

- Network-wide RSRP analysis
- Analysis of SINR reduction due to interference, etc. (Expected quality reduction area, etc.)

Monitoring All Terminals RSRP

Monitoring All Terminals SINR

Monitoring All Terminals PCI

Network Quality analysis

Real-time monitoring of detailed quality information according to the real-time and movement path of the operating terminal

- Network quality information: RSRP/SINR
- Access base station information: Serving PCI/base station name/ECGI/distance from base station

Analysis of quality trends according to the moving path of the terminal during the setting period

- Analysis: RSRP is good, but check SINR reduction near other network base stations
- Action: Minimize interference by identifying and optimizing affected network base stations (PCI) and optimizing (applying RAN sharing, adjusting antenna tilt/direction, adjusting output, etc.)

Provide national and regional coverage maps for the duration (day/week/month/year, etc.)

- Provide grid-based coverage maps of 4.5km x 5.5km (sizeable)
